Detailinformationen |
|||
| Connection Form: | Lug Support | Structure: | Centre Sealing |
|---|---|---|---|
| Seal Form: | EPDM | Valve Stem: | Normal |
| Work Pressure: | Mid-Pressure (2.5mpa< Pn <6.4mpa) | Working Temperature: | Normal Temperature (-40°C |
| Seal Surface Material: | Soft Sealed | Valve Body: | Casting |
| Valve Size: | 1-1/2"~40" (DN15~DN1000) | Body Material: | FC, FCD, WCB, CF8, CF8M |
| Disc Material: | FCD, WCB, CF8, CF8M, CF3M | Seat Material: | EPDM, NBR, VITON |
| Rating: | PN10, PN16, ANSI: 150#, 300# | Connection: | Wafer, Lug, Flange |
| Specification: | 2 inch-24 inch | ||
| Hervorheben: | Pneumatic butterfly valve with EPDM seal,Industrial pneumatic lug butterfly valve,EPDM seal butterfly valve for industrial |
||
Produkt-Beschreibung

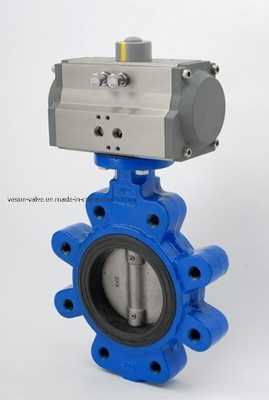

Pneumatic Actuator Butterfly Valve (Lug Type)
Air Actuated Lug Butterfly Valves with Rack Pinion or Scotch Yoke Valve System
Product Specifications
| Attribute | Value |
|---|---|
| Connection Form | Lug Support |
| Structure | Centre Sealing |
| Seal Form | EPDM |
| Valve Stem | Normal |
| Work Pressure | Mid-Pressure (2.5mpa < Pn <6.4mpa) |
| Working Temperature | Normal Temperature (-40°C < T < 120°C) |
| Material of Seal Surface | Soft Sealed |
| Valve Body | Casting |
| Application | Industrial Usage, Water Industrial Usage |
| Transport Package | Plywood Case |
| Specification | 2 inch-24 inch |
| Trademark | VESON or Customer's |
| Origin | China |
| HS Code | 84123900 |
| Production Capacity | 50000PC / Y |
Product Description
VS series pneumatic actuated butterfly valve offers reliable performance for industrial applications.
- Driving: Pneumatic Actuator
- Valve Type: Center line-type butterfly valve
- Valve Size Range: 1-1/2"~40" (DN15~DN1000)
- Body Materials: FC, FCD, WCB, CF8, CF8M
- Disc Materials: FCD, WCB, CF8, CF8M, CF3M
- Seat Materials: EPDM, NBR, VITON
- Pressure Ratings: PN10, PN16, ANSI: 150#, 300#
- Connection Types: Wafer, Lug, Flange
