Detailinformationen |
|||
| Modell Nr.: | VS-210 | Leistung: | Pneumatisch |
|---|---|---|---|
| Standard: | Standard | Druckrichtung: | Zylinder mit doppelter Wirkung |
| Doppelt wirkende Zylinder-Art: | Doppelter Rod Cylinder | Spezielle Zylinder-Art: | Anzahl der Zylinder |
| Typ des Zylinders der Kombination: | Druckzylinder | Designstandard: | ISO5211 DIN3337 |
| Transportpaket: | Sperrholz -Fallpaket | Spezifikation: | 1 Zoll 12 Zoll |
| Warenzeichen: | Veson oder Cusomer "s | Herkunft: | China |
| Hs-Code: | 84123900 | Produktionskapazität: | 50000pc / y |
| Hervorheben: | aluminum alloy pneumatic actuator,hard anodized rack and pinion actuator,corrosion resistant epoxy coated actuator |
||
Produkt-Beschreibung

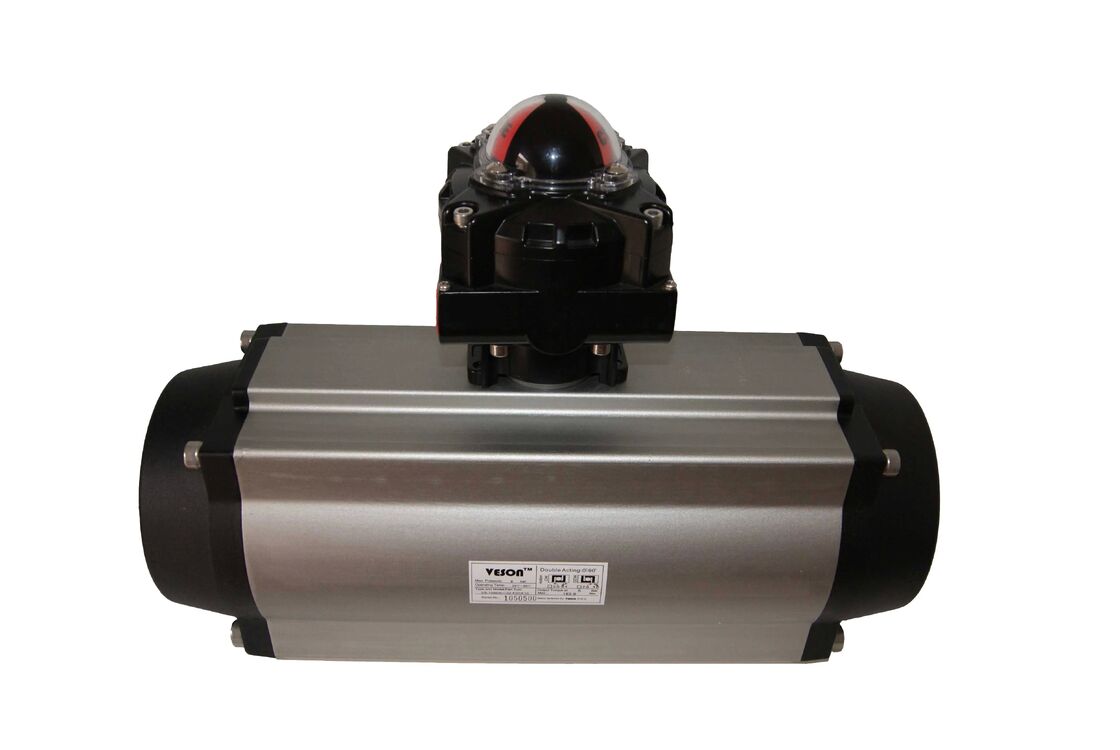

VS-210 (rack& pinion) have the following features.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
> The output torque: Double: 1596NM; Single: 275~660Nm at 6 bar air supply
> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.
> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
