Detailinformationen |
|||
| Kanaltyp: | Direkt durch den Typ | Struktur: | Schwimmendes Ballventil |
|---|---|---|---|
| Ventiltyp: | Schwimmendes Ballventil | Klassenwertung: | 150# --- 600# PN16-PN110 |
| Größenbereich: | 1/2 "-24" DN15-DN600 | Körpermaterial: | Kohlenstoffstahl, Edelstahl, Duplex Edelstahl, Bronze, Inconel |
| Endverbindung: | Flanschende (RF, RTJ) | Betriebstyp: | Handbuch, Gang, pneumatisch, elektrisch |
| Druckbewertung: | Klasse 150 - Klasse 2500 oder PN 16 - PN 420 | Materialoptionen: | WCB, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, Le |
| Wärmeschutz: | Ja | kalte Isolierung: | Ja |
| Volldurchmesser: | Ja | Leckageleistung: | Keine Leckage |
| Konstruktionstyp: | Monolithisch | ||
| Hervorheben: | Class 150-600 Pneumatic Ball Valve,PN16-PN110 V Port Ball Valve,Size 1/2"-24" Wafer Type Ball Valve |
||
Produkt-Beschreibung

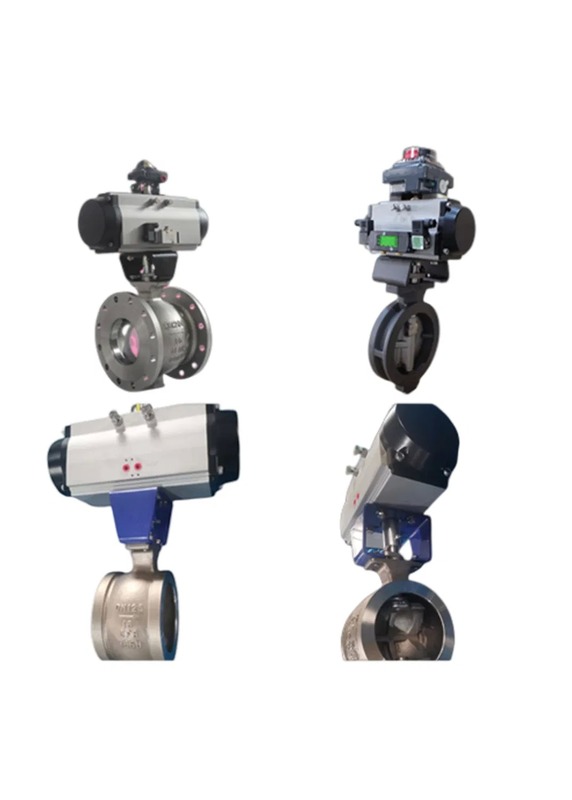

Wafer Type V Port Ball Valve with Double Action Actuator
Product Specifications
| PRODUCT NAME | Pneumatic Jacket ball valve |
|---|---|
| BRAND | Veson |
| ORIGIN | China |
| Packing | Plywood case |
| Class / Rating | 150#---600# PN16-PN110 |
| Size | 1/2"-24"DN15-DN600 |
| Materials | Body Material: Carbon steel, Stainless steel, Duplex stainless steel, Bronze, Inconel etc |
| Ends | Flange End (RF, RTJ) |
| Operation | Manual, Gear, Pneumatic, Electric, etc |
Jacket Ball Valves Description
Jacket ball valve features excellent heat-preservation and cold-insulation properties. The full-diameter design matches pipe diameter to minimize heat loss from pipeline media. Primarily used for transporting viscous media that solidifies at normal temperatures in industries including petroleum, chemical, metallurgical, pharmaceutical, and food processing.
The monolithic construction design provides superior sealing performance with more compact dimensions and lighter weight compared to traditional ball valves. The carbon steel welded jacket offers enhanced pressure resistance and durability versus cast alternatives.
Product Features
- Superior heat preservation and cold insulation capabilities
- Full-diameter design reduces heat loss
- Monolithic construction for better sealing
- Compact and lightweight design
- Enhanced pressure resistance
Applicable Standards
Sizes:
1/2" - 24", DN 15 - DN 600
Pressure Rating:
Class150 - Class 2500 or PN 16 - PN 420
Material of Valve Body:
WCB, LCB, CF3, CF8M, CF3M, CF8M, A105, LF2, F304, F304L, F316, F316L, Hastelloy, Super Duplex, Inconel, C95500, Alloy 20 etc
