Detailinformationen |
|||
| Modellnummer: | VS-052 ~ VS-400 | Kanaltyp: | Gerade durch |
|---|---|---|---|
| Strukturtyp: | Sich hin- und herbewegender Ball | Betriebener Weg: | Hebel, Zahnrad, pneumatisch, elektrisch |
| Körpermaterial: | Kohlenstoffstahl, Edelstahl, Duplex Edelstahl | Größenbereich: | NPS 1/2 "-8", DN15-200 |
| Druckklasse: | Klasse 150-1500 lb, PN 10-250 | Endverbindung: | Flansch, BW, SW, npt |
| Kugelmaterial: | Kostenloser Schnittstahl, Edelstahl (1.4571/316ti) | Versiegelungsmaterial: | Kunststoffe, Metall |
| Maximaler Druck: | PN500 | Temperaturbereich: | -20 ° C bis +80 ° C (-4 bis +176 ° F) |
| Oberflächenbeschaffung: | Schwarzoxid, Zinkschicht, Zinknickel | Produktionskapazität: | 50000pc/y |
| DN Range: | DN04 bis DN25 | ||
| Hervorheben: | Class 150-1500 Lb Pneumatic Ball Valve,PN 10 ~ 250 Pneumatic Ball Valve,DN15-200 Pneumatic Ball Valve |
||
Produkt-Beschreibung

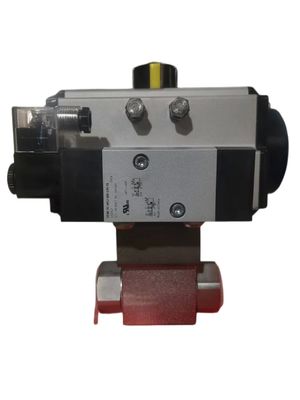

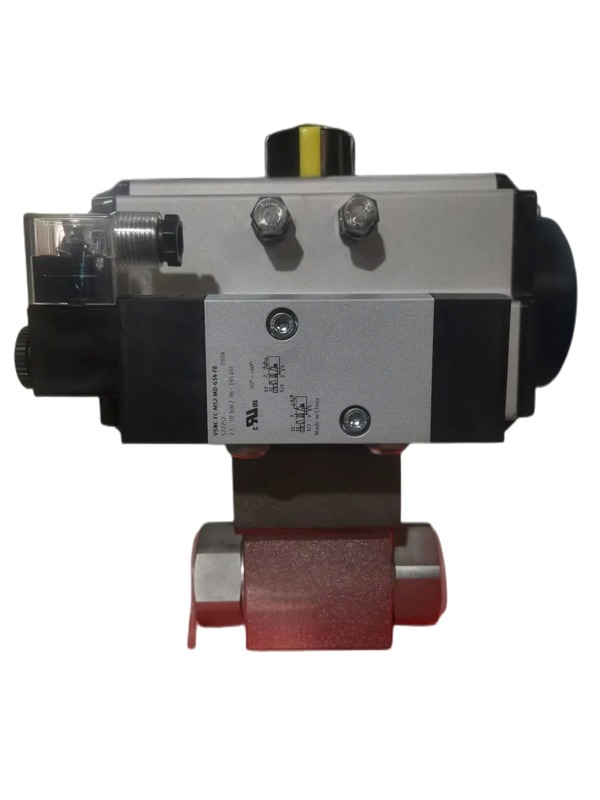

BKH - Block-Type Ball Valve with Pneumatic Actuator
High-performance 2-way ball valves designed for demanding industrial applications including construction machinery, agricultural equipment, mobile hydraulics, mining, and gas industries.
Key Features
- Available in sizes DN 4 to DN 25
- Multiple connection options including thread, compression fitting, and welding ends
- Robust construction with pressure ratings up to PN500
- Optional configurations with actuators, position switches, and locking devices
- Wide temperature range: -20°C to +80°C (-4 to +176°F)
Technical Specifications
| Component | Material |
|---|---|
| Body | S460N, S355 steel |
| Ball & Stem | Free cutting steel or stainless steel (1.4571/316Ti) |
| Sealing | Plastics or metal |
| Surface Treatment | Black oxide finishing, zinc-layer, or zinc nickel |
Connection Options
Compression fitting (light and heavy series), BSP thread, NPT thread, welding end and welding taper, UNC/UNF female thread, bulkhead connection, plug-in socket, plug nipple, and thread connection.
Applications
Ideal for hydraulic systems in construction, agriculture, mining, and gas industries. Materials and seals can be customized for specific application requirements.
