Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | angepasste Fassung: | Zugeschaltete Art |
|---|---|---|---|
| Arbeitstyp: | Rotation | Druck: | Mittlerer Druck |
| Arbeitstemperatur: | Normale Temperatur | Schauspieltyp: | Doppelte Schauspielung |
| Material: | Aluminium | Struktur: | Rack und Ritzel |
| Rotationsantrieb: | Pneumatischer Antrieb | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Beschichtung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) |
| Endkappenbeschichtung: | Epoxidbeschichtet (über 80 µm) | Kolbenbeschichtung: | Hart eloxiert (über 30 µm) |
| Reiseanpassung: | ±5º in beiden Positionen | ||
| Hervorheben: | CE Certified Pneumatic Actuator,SGS Certified Pneumatic Actuator,Namur Mounting Pneumatic Actuator |
||
Produkt-Beschreibung
Pneumatic Actuator China Manufacturer

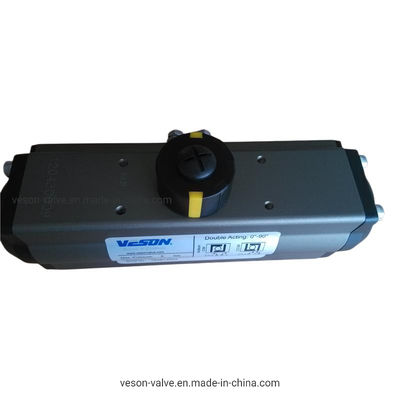

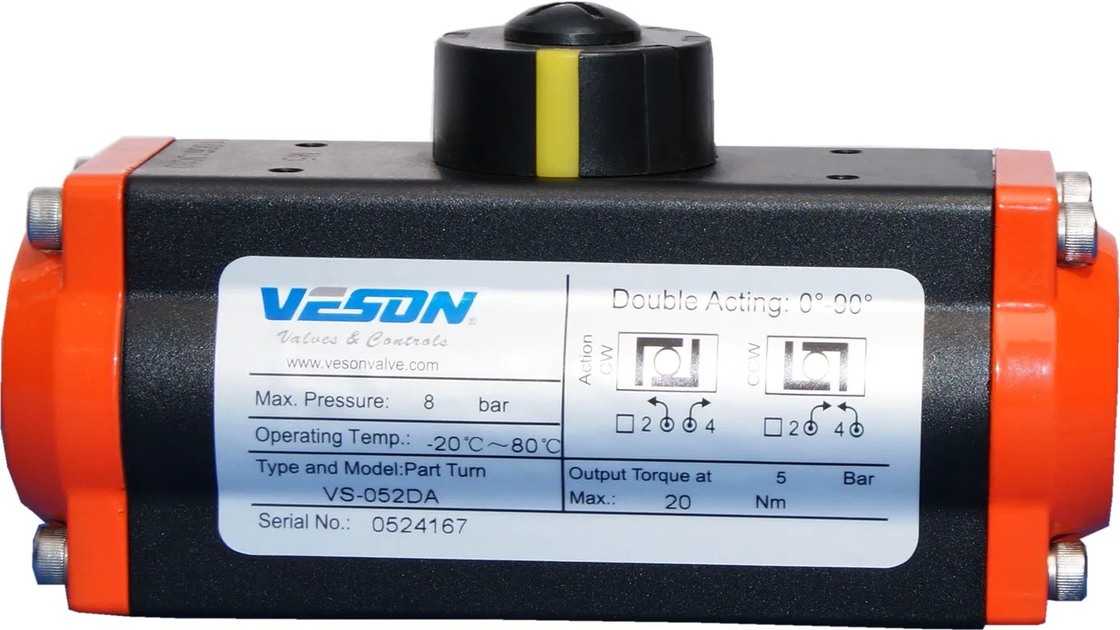

Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Precision Pinion
Hardened alloy steel pinion is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.

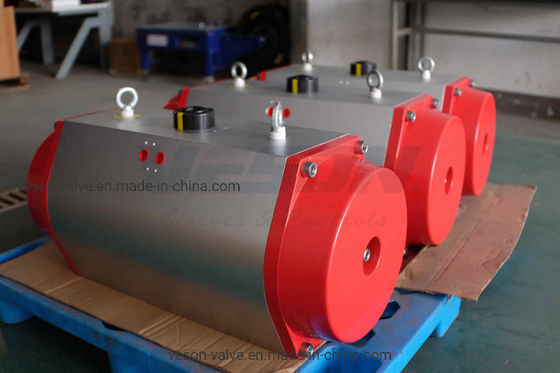

Durable Actuator Body
Hard anodized aluminum extrusion (over 30μm) protects against wear and corrosion while minimizing piston friction. Optional Epoxy Coated and PTFE Coated treatments available.
Corrosion-Resistant End Cap
Epoxy coated (over 80μm) die casting aluminum end caps provide maximum resistance against corrosive elements. PTFE Coated treatments also available.
Precision Piston
Precisely balanced, hard anodized (over 30μm) die casting aluminum piston with high quality guides. Twin rack and pinion design ensures constant torque output.
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
Premium Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction for long operational life.
