Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Material des Aktuatorkörpers: | Aluminium -Extrusion |
| Behandlung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endstöpselmaterial: | Stirbendes Aluminium |
| Endkappenbehandlung: | Epoxidbeschichtet (über 80 µm) | Kolbenmaterial: | Stirbendes Aluminium |
| Kolbenbehandlung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º |
| Federmaterial: | Hochfester Stahl | Frühlingsbehandlung: | Epoxy-Kleber beschichtet |
| Lagermaterial: | Äußerst haltbare Verbindung | ||
| Hervorheben: | ISO5211 Standard Pneumatic Actuator,DIN3337 Standard Air Actuator,Hard Anodized Pneumatic Air Actuator |
||
Produkt-Beschreibung

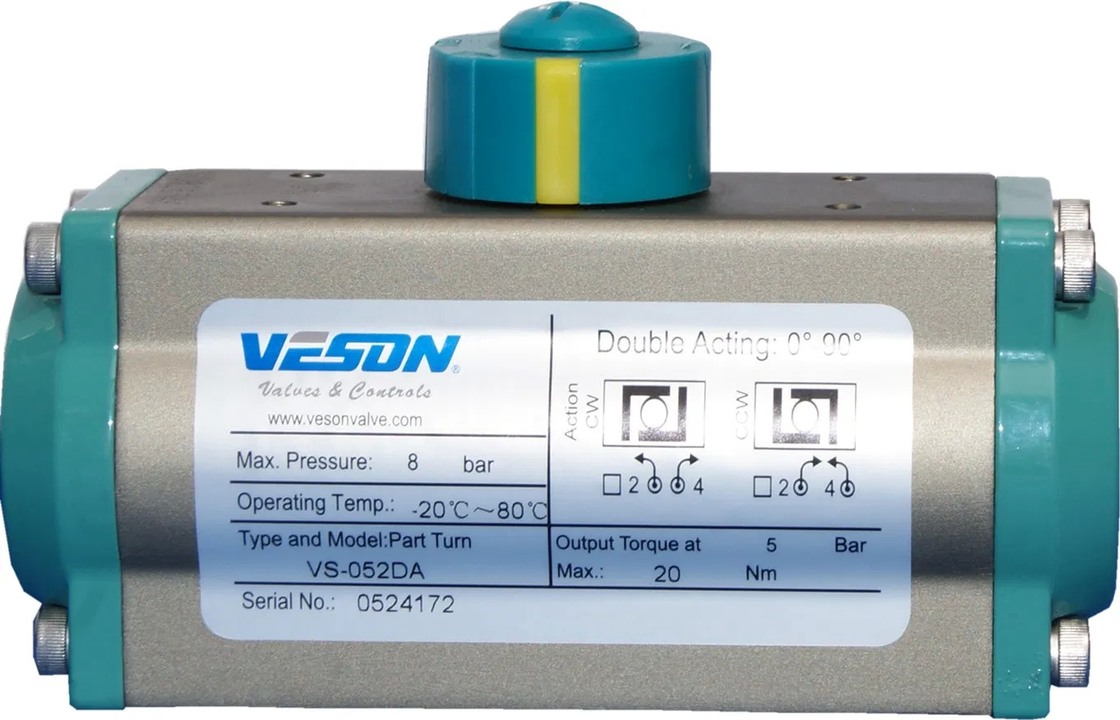

Actreg Type Aluminum Pneumatic Actuator
Position Indicator
Features a position indicator with Namur mounting for easy accessory attachment, standard on all VESON pneumatic actuators.
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Durable Actuator Body
Constructed from hard anodized (over 30μm) aluminum extrusion for superior wear and corrosion resistance while minimizing piston friction.
Optional coatings: Epoxy Coated and PTFE Coated versions available.
Robust End Caps
Epoxy coated (over 80μm) die-cast aluminum end caps provide exceptional resistance against corrosive elements.
Optional treatments include PTFE Coating.
Precision Piston
- Precisely balanced die-cast aluminum construction
- Hard anodized treatment (over 30μm) for durability
- Fitted with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
Standard adjustment of ±5° in both open and closed positions via easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design for safe and rapid disassembly
Premium Bearings & Guides
Highly durable compound material provides exceptional thrust stability with minimal friction for extended operational life.
