Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Material des Aktuatorkörpers: | Aluminium -Extrusion |
| Behandlung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endstöpselmaterial: | Stirbendes Aluminium |
| Endkappenbehandlung: | Epoxidbeschichtet (über 80 µm) | Kolbenmaterial: | Stirbendes Aluminium |
| Kolbenbehandlung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º |
| Federmaterial: | Hochfester Stahl | Frühlingsbehandlung: | Epoxy-Kleber beschichtet |
| Lager- und Führungsmaterial: | Hochbeständiges Verbundmaterial | ||
| Hervorheben: | VS-052~VS-400 Model Pneumatic Actuator,Hard Anodized Pneumatic Actuator,CE & SGS Certified Pneumatic Actuator |
||
Produkt-Beschreibung

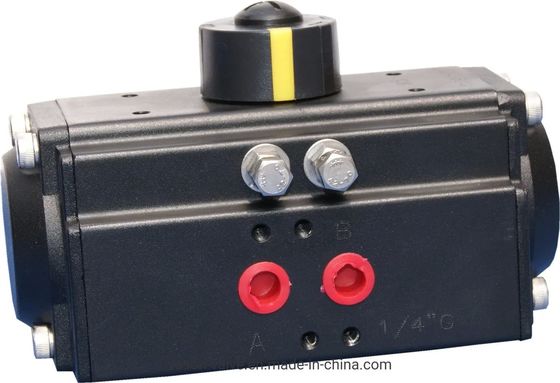

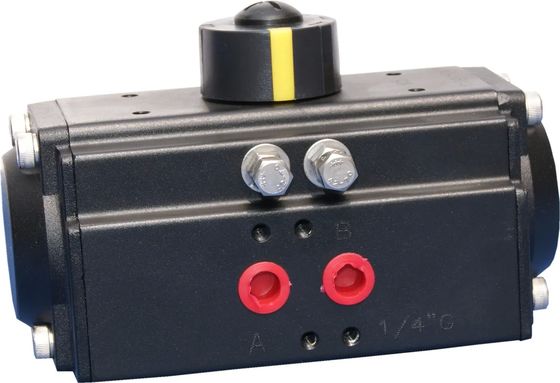

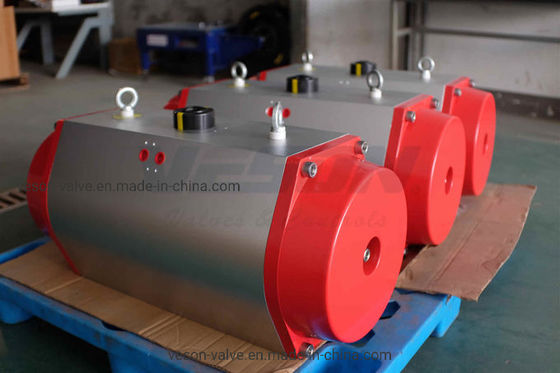

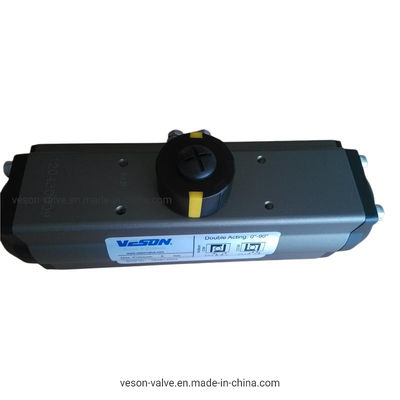

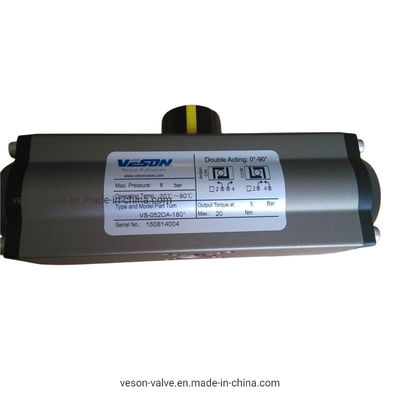

Pneumatic Actuator Aluminum Alloy Manufacturer
Position Indicator
A position indicator with Namur mounting is standard on all VESON pneumatic actuators for mounting accessories.
Pinion
- Hardened alloy steel pinion precision ground and Nickel plated (over 15μm)
- Reduces friction and provides maximum wear resistance
- Full conformance with ISO5211 & DIN3337 standards
- Customizable dimensions available
- Optional materials: stainless steel and aluminum alloy
Actuator Body
- Hard anodized aluminum extrusion (over 30μm)
- Protects against wear and corrosion while minimizing piston friction
- Optional treatments: Epoxy Coated and PTFE Coated
End Cap
- Epoxy coated die casting aluminum (over 80μm)
- Provides maximum resistance against potentially corrosive elements
- Optional treatments including PTFE Coated
Piston
- Precisely balanced hard anodized die casting aluminum (over 30μm)
- Fitted with high quality guides
- Twin rack and pinion design ensures constant torque output
Travel Adjustment
Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
High Performance Springs
- High tensile steel springs with Epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded springs allow safe and rapid disassembly
Bearings & Guides
Highly durable compound material provides high thrust stability with minimum friction and long operational life.
