Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | angepasste Fassung: | Zugeschaltete Art |
|---|---|---|---|
| Arbeitstyp: | Rotation | Druck: | Mittlerer Druck |
| Arbeitstemperatur: | Niedrigtemperatur | Schauspieltyp: | Doppelte Schauspielung |
| Material: | Aluminium | Struktur: | Rack und Ritzel |
| Stromquelle: | Pneumatisch | Produkttyp: | Neumatischer Zahnstangenantrieb |
| Betätigung: | Viertelzeit | Steuertyp: | Ein/Aus, Positionierung, Modulation, ESD |
| Ventiltyp: | Kugel, Butterfly, Plug und jede andere Vierteldrehung | Betriebstemperatur: | -20 ° C bis +80 ° C (-4 ° F bis +176 ° F) |
| Drehmoment: | 12 Nm bis 6000 Nm | Betriebsdruck: | 8,3 bar / 120 psi |
| Hervorheben: | Precision Engineered Pneumatic Actuator,Medium Pressure Rack and Pinion Actuator,Low Temperature Valve Actuation System |
||
Produkt-Beschreibung
Precision Engineered Rack and Pinion Valve Actuation Systems
Crafted for excellence, the Veson VS series actuator delivers unparalleled performance across diverse quarter-turn valve applications. Featuring a robust powder coating and innovative high corrosion-resistant aluminum pinion design with stainless steel fasteners, this actuator offers unmatched durability for long-term reliability.
Key Features
- Hard anodized high-grade aluminum pinion for superior corrosion resistance
- Modular construction for easy alterations between spring/action settings
- Dual valve flange drilling patterns and interchangeable drive inserts
- NAMUR interface standard for seamless accessory integration
- Dual stroke adjustment to prevent premature valve failures
- Standardized components for quick delivery in common configurations
Technical Specifications
| Power Source | Pneumatic |
|---|---|
| Product Type | Pneumatic Rack and Pinion Actuator |
| Actuation | Quarter-turn |
| Control Type | On/Off, Positioning, Modulating, Emergency Shutdown (ESD) |
| Valve Type | Ball, Butterfly, Plug, and other quarter-turn applications |
| Operating Temperature | -20°C to +80°C (-4°F to +176°F), with optional adjustments |
| Torque Range | 12 Nm to 6000 Nm (18 sizes available) |
| Operating Pressure | Up to 8.3 bar / 120 psi |
Available in both single and double acting configurations across 18 sizes, with torque capabilities from 12 Nm to 6000 Nm. Designed for simple installation and years of reliable performance with a "fit and forget" approach.

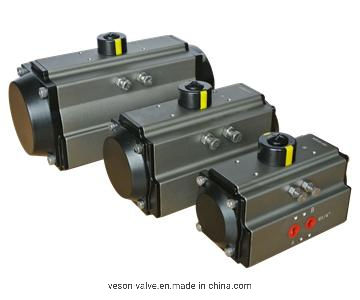

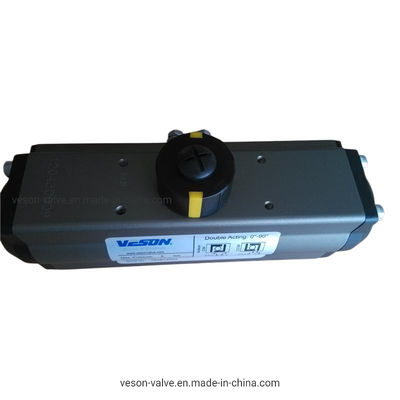

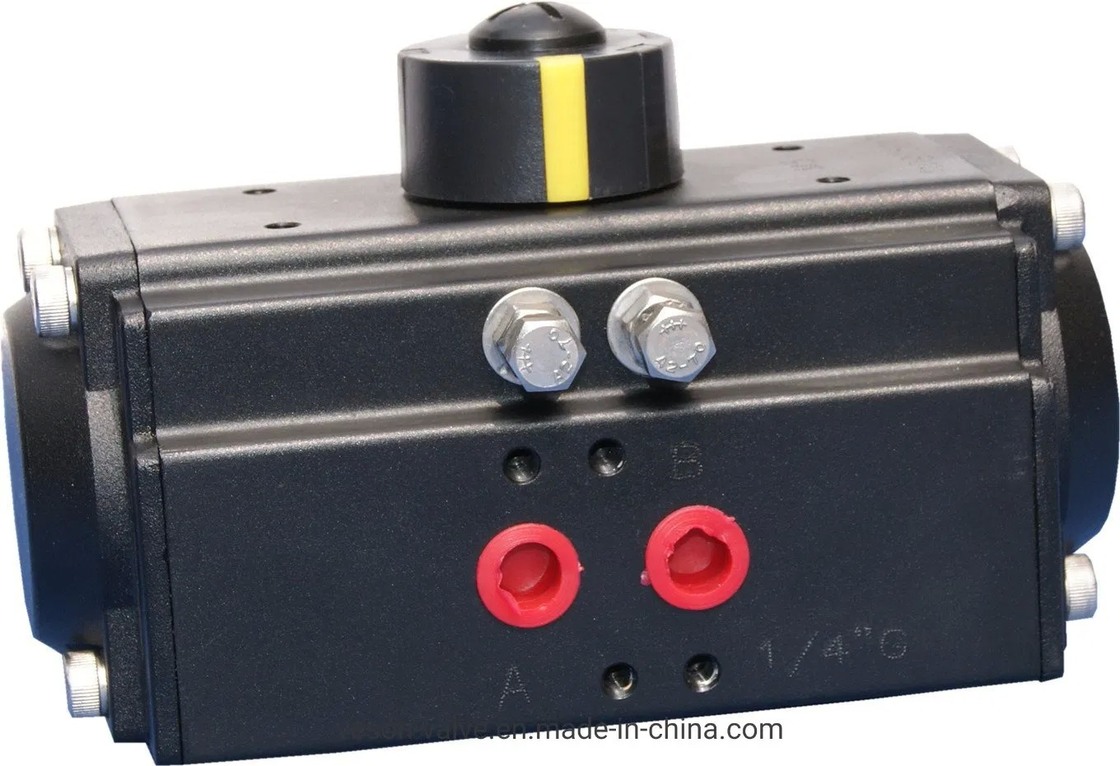

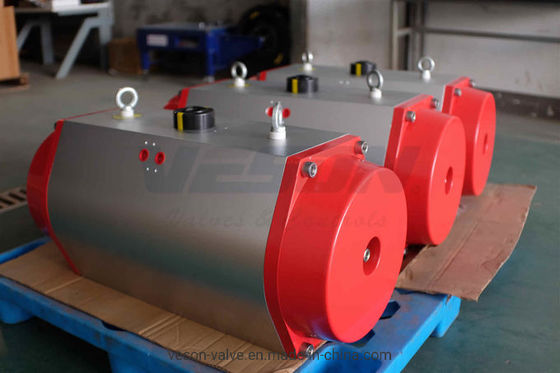

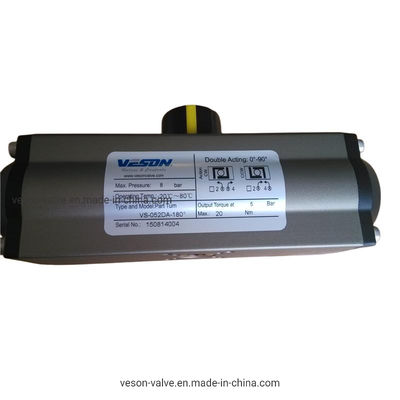

Product Images
