Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Luftversorgung: | 40-100Psig |
| Zubehör: | mit einer Leistung von mehr als 10 W | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Material des Aktuatorkörpers: | Aluminium -Extrusion |
| Beschichtung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endstöpselmaterial: | Stirbendes Aluminium |
| Endkappenbeschichtung: | Epoxidbeschichtet (über 80 µm) | Kolbenmaterial: | Stirbendes Aluminium |
| Kolbenbeschichtung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º |
| Federmaterial: | Hochfester Stahl | ||
| Hervorheben: | 40-100psig Air Supply Pneumatic Actuator,Travel Adjustment ±5º Rack Pinion Actuator,NBR/HNBR/Viton O Ring Pneumatic Rotary Actuator |
||
Produkt-Beschreibung

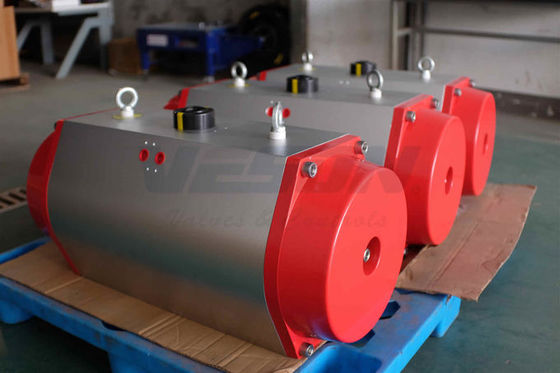

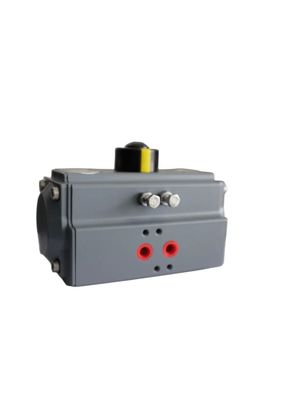

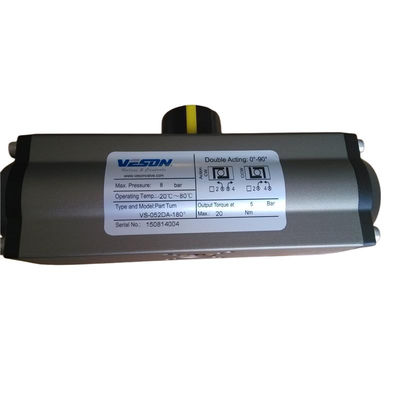

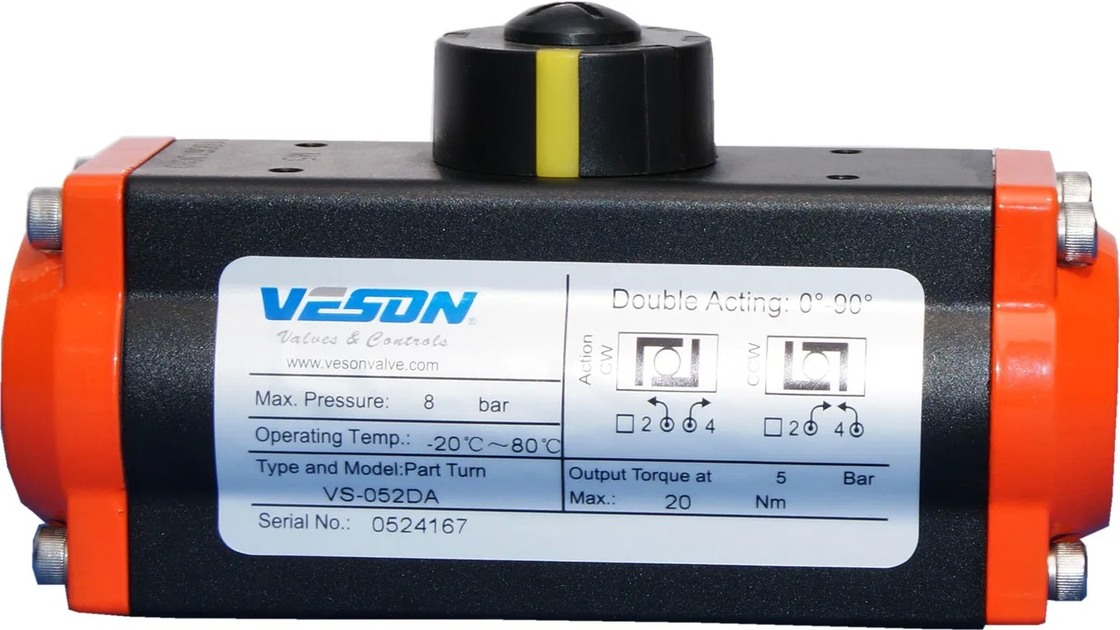

Pneumatic Actuator Rack Pinion with NBR/HNBR/Viton O Ring
This high-performance pneumatic actuator features precision engineering with durable materials for reliable operation in industrial applications.
Key Features
- Position Indicator: Standard Namur mounting for accessory compatibility
- Precision Pinion: Hardened alloy steel with nickel plating (>15μm) for reduced friction and maximum wear resistance
- Durable Actuator Body: Hard anodized aluminum extrusion (>30μm) with optional epoxy or PTFE coating
- Corrosion-Resistant End Caps: Epoxy coated die-cast aluminum (>80μm) with optional PTFE treatment
- Balanced Piston: Hard anodized die-cast aluminum (>30μm) with twin rack and pinion design for consistent torque
- Adjustable Travel: ±5° adjustment in both open and closed positions via external bolts
- High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and rapid disassembly
- Durable Bearings: High-trust compound material for minimal friction and extended service life
Specifications
Complies with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
