Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Material des Aktuatorkörpers: | Aluminium -Extrusion |
| Behandlung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endstöpselmaterial: | Stirbendes Aluminium |
| Endkappenbehandlung: | Epoxidbeschichtet (über 80 µm) | Kolbenmaterial: | Stirbendes Aluminium |
| Kolbenbehandlung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º in beiden Positionen |
| Federmaterial: | Hochfester Stahl | Federbeschichtung: | Epoxy-Kleber beschichtet |
| Lagermaterial: | Äußerst haltbare Verbindung | ||
| Hervorheben: | Hard Anodized Aluminum Pneumatic Cylinder,Epoxy Coated Pneumatic Cylinder,Travel Adjustment ±5º Pneumatic Cylinder |
||
Produkt-Beschreibung

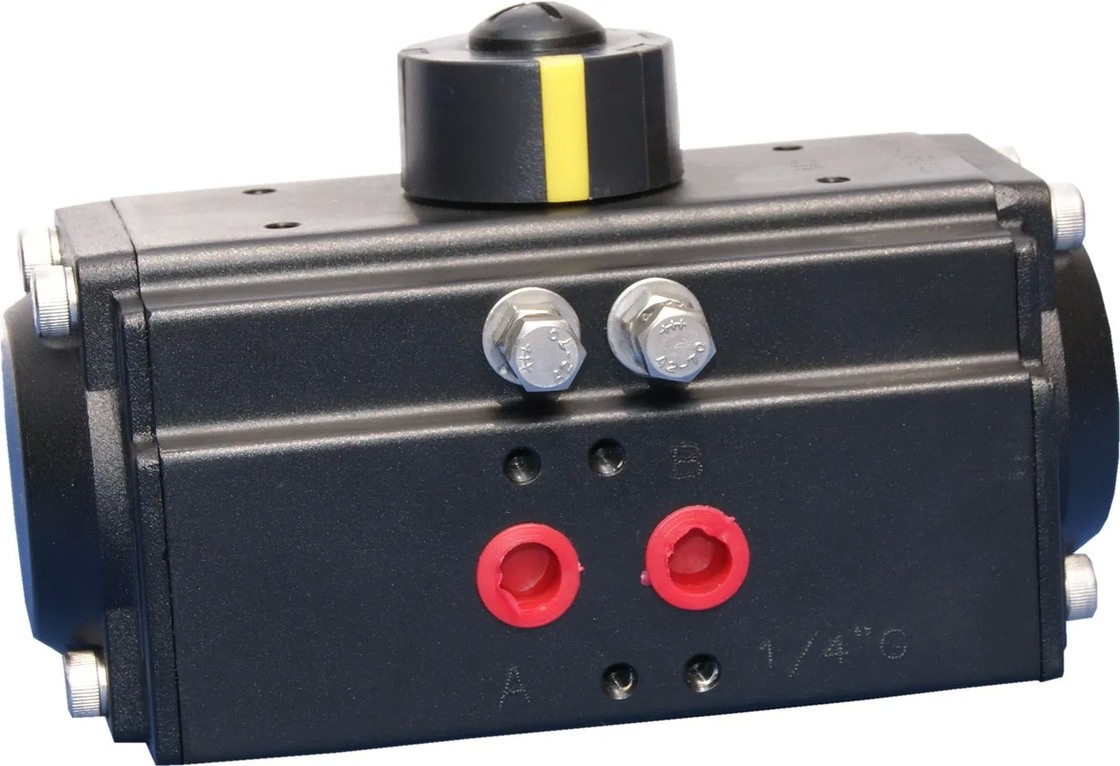

China Manufacturer Pneumatic Cylinder
Product Features
- Indicator: A position indicator with Namur mounting is included on all VESON pneumatic actuators for mounting accessories.
- Pinion: Features a hardened alloy steel pinion that is precision ground and Nickel plated (over 15μm) to reduce friction and provide maximum wear resistance. Fully conforms with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel and aluminum alloy options.
- Actuator Body: Constructed with hard anodized (over 30μm) aluminum extrusion for wear and corrosion protection while minimizing piston friction. Epoxy Coated and PTFE Coated options available.
- End Cap: Made from epoxy coated (over 80μm) die casting aluminum for maximum resistance against corrosive elements. PTFE Coated treatment available as an option.
- Piston: Precisely balanced with hard anodized treatment (over 30μm) die casting aluminum piston fitted with high-quality guides. Twin rack and pinion design ensures constant torque output.
- Travel Adjustment: Standard adjustment of ±5° in both open and closed positions through easily accessible external adjustment bolts.
- High Performance Springs: High tensile steel springs with epoxy coating for corrosion resistance and extended service life. Pre-loaded springs can be safely and rapidly disassembled.
- Bearings & Guides: Highly durable compound material provides high thrust stability with minimum friction and long operational life.
