Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | angepasste Fassung: | EinAus |
|---|---|---|---|
| Arbeitstyp: | Rotation | Druck: | Mittlerer Druck |
| Arbeitstemperatur: | Normale Temperatur | Schauspieltyp: | Doppelte Schauspielung |
| Material: | Aluminium | Struktur: | Rack und Ritzel |
| Zahntriebmaterial: | Verhärteter legierter Stahl | Ritzelbeschichtung: | Vernickelt (über 15 µm) |
| Beschichtung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endkappenbeschichtung: | Epoxidbeschichtet (über 80 µm) |
| Kolbenbeschichtung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º |
| Federbeschichtung: | Epoxy-Kleber beschichtet | ||
| Hervorheben: | ISO5211 & DIN3337 Standard Pneumatic Actuator,CE & SGS Certified Valve Actuator,VS-052~VS-400 Model Pneumatic Actuator |
||
Produkt-Beschreibung

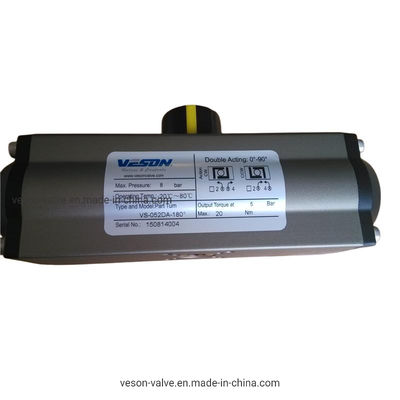

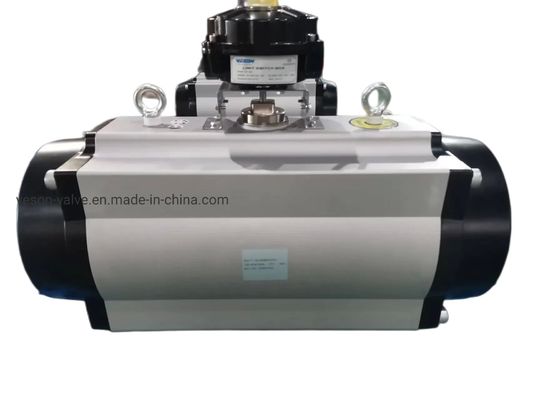

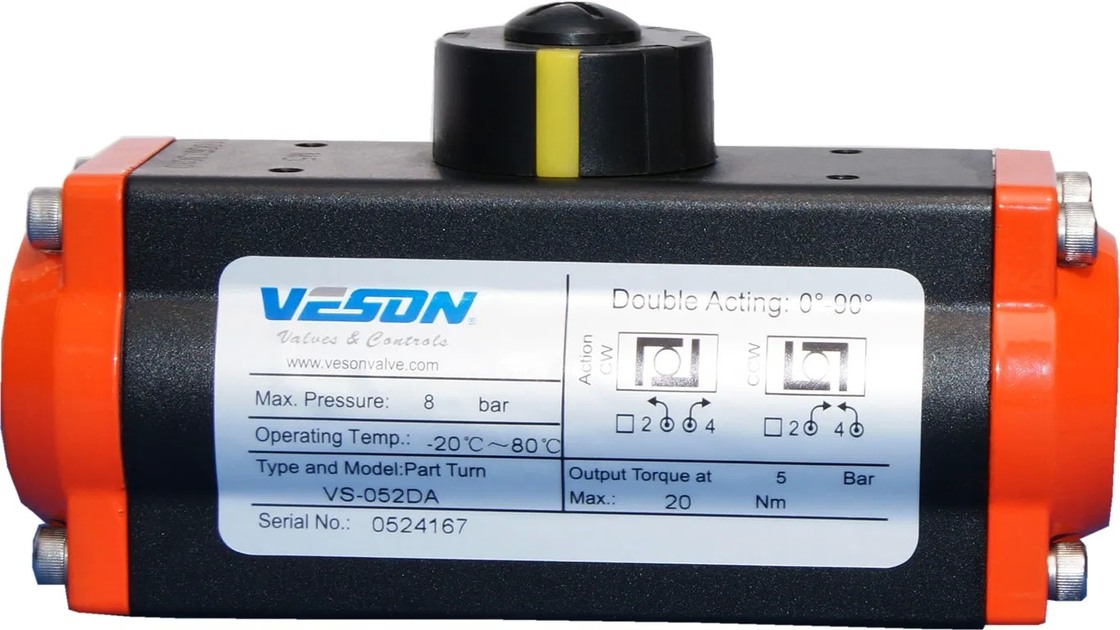

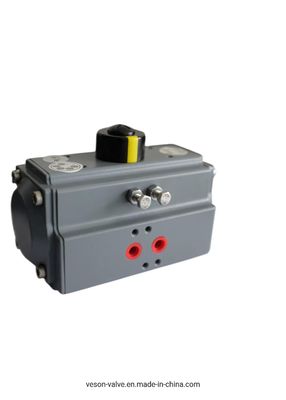

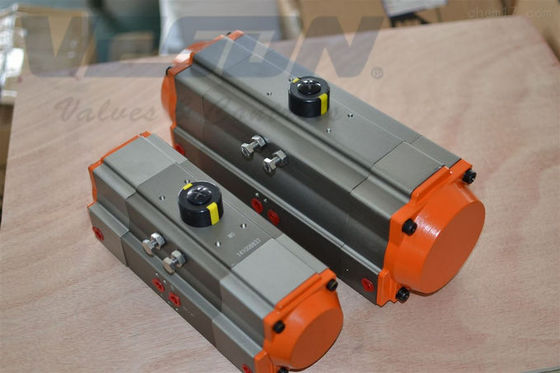

Valve Pneumatic Actuator Pneumatic Drive Actuated Solution
High-performance pneumatic actuator solution designed for industrial valve applications, featuring durable construction and precision engineering.
Key Features
- Position Indicator: Equipped with Namur mounting for accessory installation.
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Compliant with ISO5211 & DIN3337 standards. Custom dimensions available with stainless steel or aluminum alloy options.
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available.
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (over 80μm) with optional PTFE coating.
- Precision Piston: Hard-anodized die-cast aluminum (over 30μm) with high-quality guides and twin rack-and-pinion design for consistent torque output.
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts.
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and extended service life. Designed for safe, rapid disassembly.
- Premium Bearings & Guides: Durable compound material for high thrust stability with minimal friction and long operational life.
