Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Fahren: | Pneumatischer Aktuator |
| Zahntriebmaterial: | Verhärteter legierter Stahl | Ritzelbeschichtung: | Vernickelt (über 15 µm) |
| Auslöser-Körper: | Aluminium -Extrusion | Körperbeschichtung: | Hart eloxiert (über 30 µm) |
| Endstöpsel: | Stirbendes Aluminium | Endkappenbeschichtung: | Epoxidbeschichtet (über 80 µm) |
| Kolbenmaterial: | Stirbendes Aluminium | Kolbenbeschichtung: | Hart eloxiert (über 30 µm) |
| Reiseanpassung: | ±5º | Federmaterial: | Hochfester Stahl |
| Federbeschichtung: | Epoxy-Kleber beschichtet | ||
| Hervorheben: | ISO Pad 5211 Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Limit Switch Boxes Pneumatic Air Actuator |
||
Produkt-Beschreibung

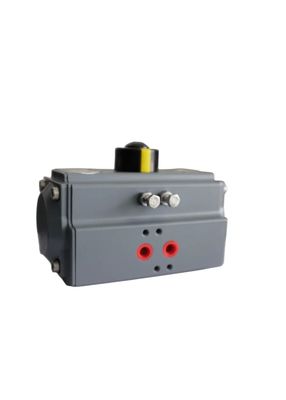

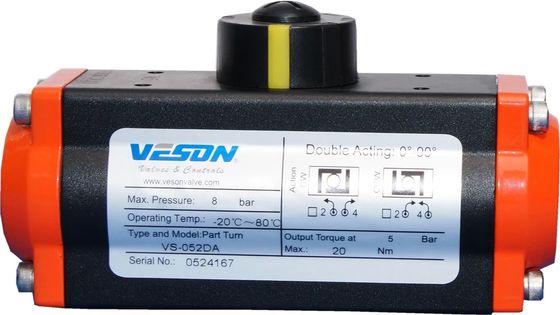

Epoxy Coated Pneumatic Actuator with ISO Pad 5211
Premium Features and Specifications
Position Indicator
- Namur mounting position indicator included on all VESON pneumatic actuators
Precision Pinion
- Hardened alloy steel construction with precision grinding
- Nickel plated (over 15μm) for reduced friction and maximum wear resistance
- Fully compliant with ISO5211 & DIN3337 standards
- Custom dimensions available with stainless steel and aluminum alloy options
Durable Actuator Body
- Hard anodized aluminum extrusion (over 30μm) for wear and corrosion protection
- Minimized piston friction
- Optional Epoxy Coated and PTFE Coated treatments available
Corrosion-Resistant End Caps
- Epoxy coated (over 80μm) die casting aluminum construction
- Maximum resistance against corrosive elements
- Optional PTFE Coated treatment available
Precision Piston System
- Hard anodized (over 30μm) die casting aluminum piston
- Precisely balanced with high-quality guides
- Twin rack and pinion design ensures constant torque output
Adjustable Travel
- Standard adjustment of ±5° in both open and closed positions
- Easy access via external adjustment bolts
High Performance Springs
- High tensile steel construction with epoxy coating for corrosion resistance
- Extended service life
- Pre-loaded design allows for safe and rapid disassembly
Durable Bearings & Guides
- Highly durable compound material construction
- Provides high thrust stability with minimal friction
- Extended operational lifespan
