Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Material des Aktuatorkörpers: | Aluminium -Extrusion |
| Beschichtung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endstöpselmaterial: | Stirbendes Aluminium |
| Endkappenbeschichtung: | Epoxidbeschichtet (über 80 µm) | Kolbenmaterial: | Stirbendes Aluminium |
| Kolbenbeschichtung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º in geöffneter/geschlossener Position |
| Federmaterial: | Hochfester Stahl | Federbeschichtung: | Epoxy-Kleber beschichtet |
| Lagermaterial: | Äußerst haltbare Verbindung | ||
| Hervorheben: | VS-052~VS-400 Model Pneumatic Actuator,Travel Adjustment ±5º Valve Actuator,Rotork Type Valve Actuator |
||
Produkt-Beschreibung

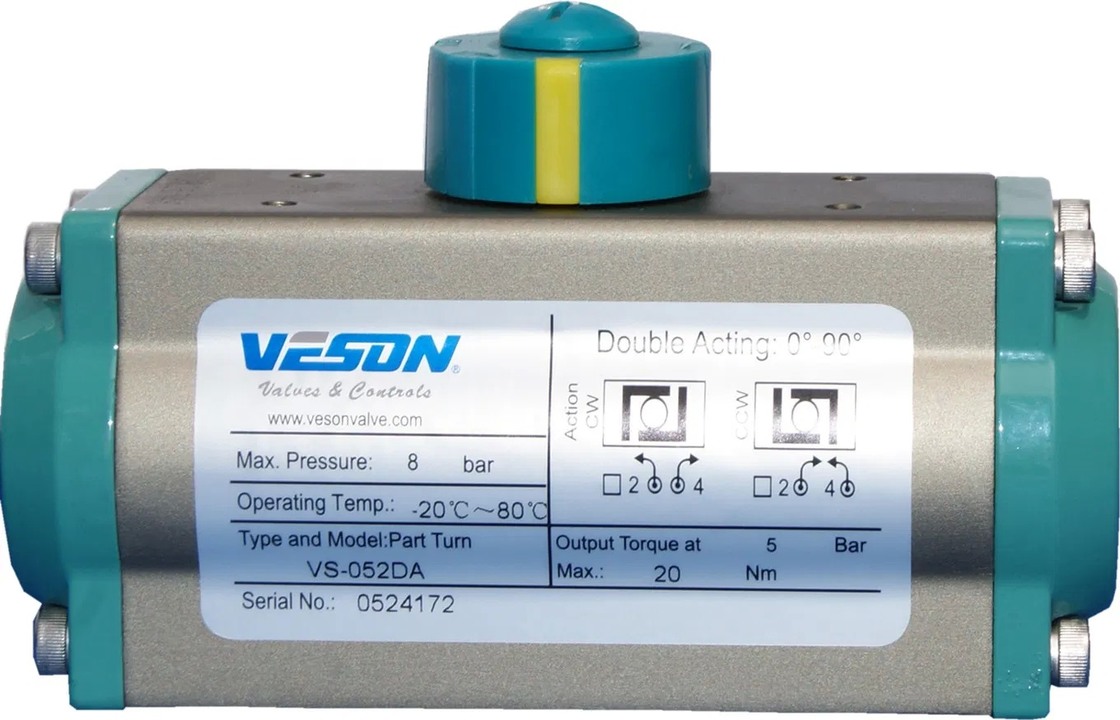

Double Acting Pneumatic Actuator Rotork Type Valve Actuator
This high-performance pneumatic actuator features precision engineering and durable materials for reliable valve operation in industrial applications.
Key Features
- Position Indicator: Standard Namur mounting for accessory installation
- Precision Pinion: Hardened alloy steel with nickel plating (15μm+) for reduced friction and maximum wear resistance
- Durable Actuator Body: Hard-anodized aluminum extrusion (30μm+) with optional epoxy or PTFE coating
- Corrosion-Resistant End Caps: Epoxy-coated die-cast aluminum (80μm+) with optional PTFE treatment
- Balanced Piston: Hard-anodized die-cast aluminum (30μm+) with twin rack and pinion design for consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external bolts
- High-Performance Springs: Epoxy-coated high-tensile steel for corrosion resistance and easy maintenance
- Durable Bearings: High-trust compound materials for stability and long service life
Product Images
Technical Specifications
Full conformance with ISO 5211 & DIN 3337 standards. Custom dimensions and material options available including stainless steel and aluminum alloy components.
