Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | Leistung: | Pneumatisch |
|---|---|---|---|
| Druckrichtung: | Zylinder mit doppelter Wirkung | Zahntriebmaterial: | Verhärteter legierter Stahl |
| Ritzelbeschichtung: | Vernickelt (über 15 µm) | Material des Aktuatorkörpers: | Aluminium -Extrusion |
| Beschichtung des Aktuatorkörpers: | Hart eloxiert (über 30 µm) | Endstöpselmaterial: | Stirbendes Aluminium |
| Endkappenbeschichtung: | Epoxidbeschichtet (über 80 µm) | Kolbenmaterial: | Stirbendes Aluminium |
| Kolbenbeschichtung: | Hart eloxiert (über 30 µm) | Reiseanpassung: | ±5º in geöffneter/geschlossener Position |
| Federmaterial: | Hochfester Stahl | Federbeschichtung: | Epoxy-Kleber beschichtet |
| Lagermaterial: | Äußerst haltbare Verbindung | ||
| Hervorheben: | Travel Adjustment ±5º Pneumatic Actuator,High Performance Springs Pneumatic Air Actuator,Precision Ground Pinion Pneumatic Rotary Actuator |
||
Produkt-Beschreibung

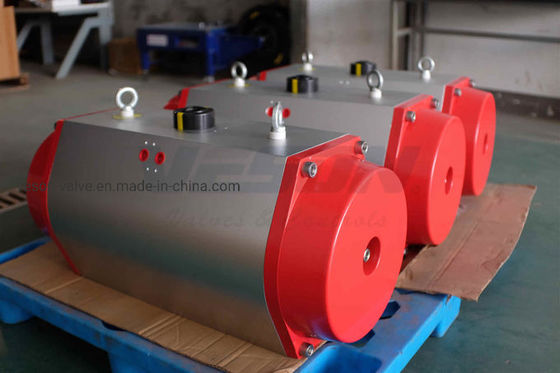

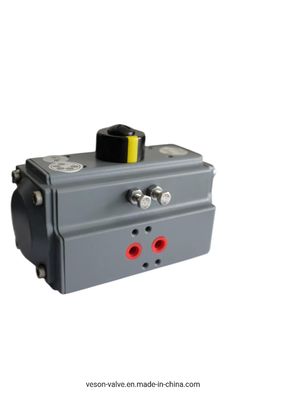

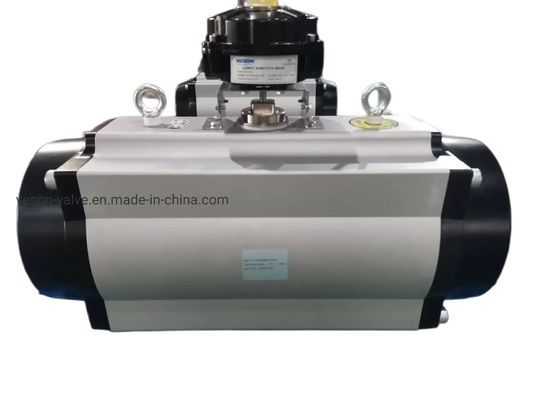

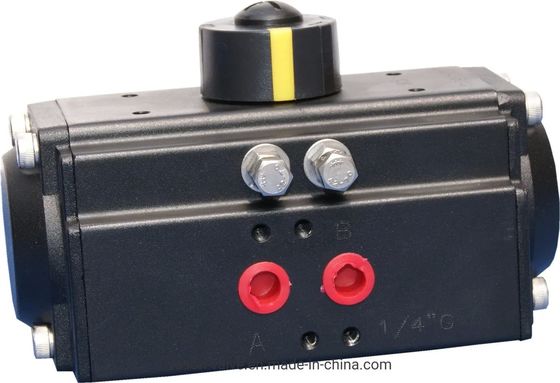

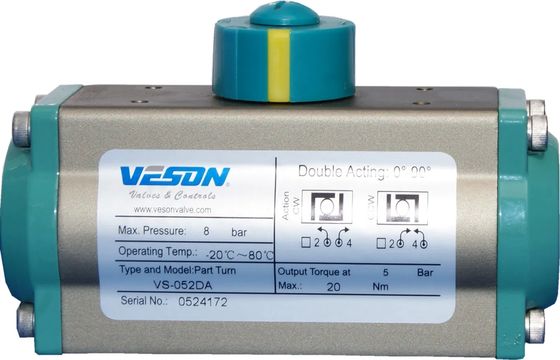

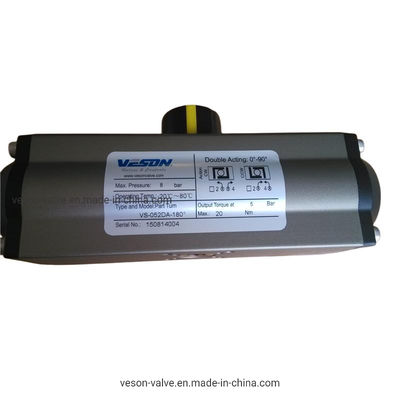

Single Acting Pneumatic Actuator
Key Features
- Position Indicator: Standard Namur mounting for accessory attachment on all VESON pneumatic actuators
- Precision Pinion: Hardened alloy steel with nickel plating (over 15μm) for reduced friction and maximum wear resistance. Complies with ISO5211 & DIN3337 standards. Custom dimensions and material options (stainless steel, aluminum alloy) available
- Durable Actuator Body: Hard-anodized aluminum extrusion (over 30μm) for corrosion protection and minimal piston friction. Optional epoxy or PTFE coatings available
- Corrosion-Resistant End Caps: Epoxy-coated (over 80μm) die-cast aluminum with optional PTFE treatment
- Precision Piston: Hard-anodized (over 30μm) die-cast aluminum with high-quality guides. Twin rack and pinion design ensures consistent torque output
- Adjustable Travel: ±5° adjustment in both open and closed positions via external adjustment bolts
- High-Performance Springs: Epoxy-coated high tensile steel for corrosion resistance and extended service life. Pre-loaded design allows safe, rapid disassembly
- Premium Bearings & Guides: High-durability compound material provides stable thrust with minimal friction for long operational life
Product Images
