Detailinformationen |
|||
| Verbindungsformular: | Flansch | Fahrmodus: | Pneumatisch |
|---|---|---|---|
| Nenndruck: | PN1.0-32.0MPA | Kanaltyp: | Gerade durch |
| Ventilstruktur: | Sich hin- und herbewegender Ball | Ventilgröße: | 1/2 "~ 12" (DN15 ~ DN300) |
| Körpermaterial: | WCB, CF8, CF8M, CF3M | Sitzmaterial: | PTFE, RTFE, Graphit und andere |
| Druckbewertung: | DIN: PN10 ~ PN40, ANSI: 150#~ 600# | Luftversorgung: | 40-100Psig |
| Luftverbindung: | 1/4 " | Temperaturbereich: | Normale Temperatur |
| Ventiltyp: | 2-pc-Flanschendballventil | Funktion: | Blowdown, Erleichterung, Atmosphäre |
| Produktionskapazität: | 50000pc/y | ||
| Hervorheben: | 2-PC Flanged Ball Valve,ISO5211 Standard Pneumatic Actuated Ball Valve,DN15-DN300 Air Operated Ball Valve |
||
Produkt-Beschreibung

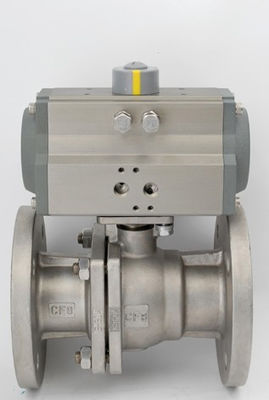

Pneumatic Actuated Ball Valve (2-PC FLANGED END) Air Pressure Control System
VS series pneumatic actuated ball valve (2-PC FLANGED END) designed for precise air pressure control in industrial applications.
Key Specifications
| Valve Type | 2-PC Flanged End Ball Valve (two way) |
|---|---|
| Valve Size Range | 1/2"~12" (DN15~DN300) |
| Body/Ball Materials | WCB, CF8, CF8M, CF3M |
| Seat Materials | PTFE, RTFE, Graphite & Others |
| Pressure Ratings | DIN: PN10~PN40 ANSI: 150#~600# |
| Connection Type | Flanged End |
Product Features
- Pneumatic actuation for reliable air pressure control
- Durable construction with multiple material options
- Flanged end connection for secure installation
- Available in wide range of sizes and pressure ratings
- Versatile seat material options for different applications
