Detailinformationen |
|||
| Modellnummer: | VS-063DA | Verbindungsformular: | Flansch |
|---|---|---|---|
| Struktur: | Mitteversiegelung | Versiegelungsform: | Kraft versiegelt |
| Ventilstiel: | Normal | Arbeitsdruck: | Midendrückung (2,5mpa <pn <6,4mpa) |
| Arbeitstemperatur: | Mittlere Temperatur (120°C| Versiegelungsmaterial: |
Weich versiegelt |
|
| Ventilkörper: | Blech | Größenspezifikation: | 2 Zoll 24 Zoll |
| Lufterdruck der Aktuator: | 80-120 psi | Aktuator -Zyklusleben: | 1 Million Zyklen |
| Aktuatordesign: | Zahnstangenritzel | Wetterfeste Bewertung: | IP66 & IP68 |
| Montagestandard: | ISO5211 | ||
| Hervorheben: | Mid-Pressure Air Actuated Butterfly Valve,Medium Temperature Butterfly Valve,2 inch-24 inch Pneumatic Butterfly Valve |
||
Produkt-Beschreibung

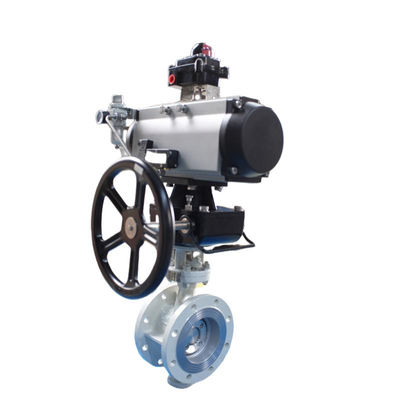

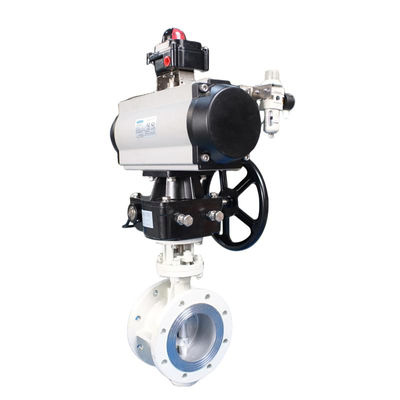

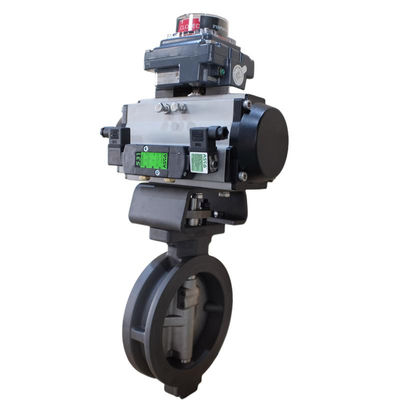

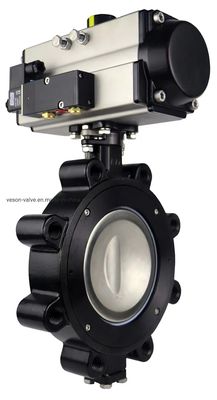

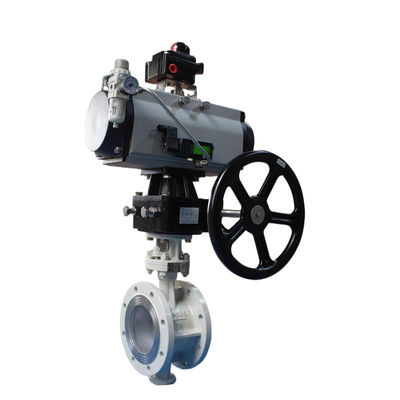

Air Actuated Butterfly Valve with Topworks Limit Switch Box Signal Box
Air actuated soft seated butterfly valve designed for on-off control of water and other compatible media. Features spring return actuators that use air pressure (80-120 PSI) to open and springs to close, ensuring fail-closed operation upon loss of air signal.
Butterfly Valve Standard Features
- Rugged epoxy coated ductile iron body with stainless steel disc for maximum corrosion resistance
- Extended lifespan with unique wave line seat and special disc shape design
- Reduced torque from wave seal and disc design allows for smaller, more cost-effective actuators
- Increased flow capacity through unique profile disc and two-piece shaft design
- Standard ISO5211 mounting for direct actuator connection
Pneumatic Actuator Standard Features
- Extended cycle life (1 million cycles)
- Rack pinion design for reliable operation
- Highly visible valve position indicator
- Type IP66 & IP68 weatherproof rating
- Anodized aluminum body with epoxy-polyester covers
- Compatible with dry or lubricated pilot air
- Namur & ISO mounting options
Product Images
