Detailinformationen |
|||
| Verbindungsformular: | Flansch | Fahrmodus: | Pneumatisch |
|---|---|---|---|
| Nenndruck: | PN1.0-32.0MPA | Kanaltyp: | Gerade durch |
| Ventilstruktur: | Sich hin- und herbewegender Ball | Ventiltyp: | Schwimmendes Ballventil |
| Temperaturbereich: | Normale Temperatur | Größenbereich: | 1 Zoll 12 Zoll |
| Produktionskapazität: | 50000pc/y | Wellendichtungen: | Dual O-Ring |
| Buchsenmaterial: | Öleinimprägnierte Bronze | Gehäusematerial: | 316 Edelstahl |
| Montagestandard: | ISO5211 | Ausgabeoptionen: | 4-20 mA kontinuierlich |
| Optionen wechseln: | Proximität fester Zustand, mechanisch | ||
| Hervorheben: | ISO5211 Standard Pneumatic Actuator,PN1.0-32.0MPa Pneumatic Ball Valve,1 inch-12 inch Automated Valve |
||
Produkt-Beschreibung

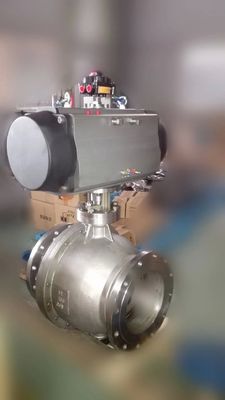

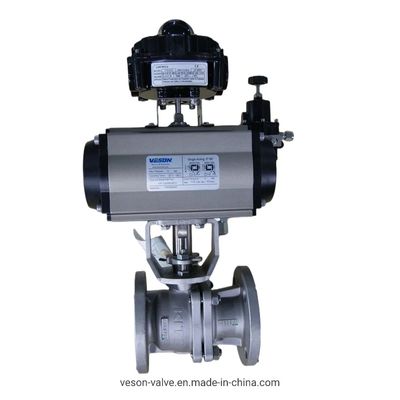

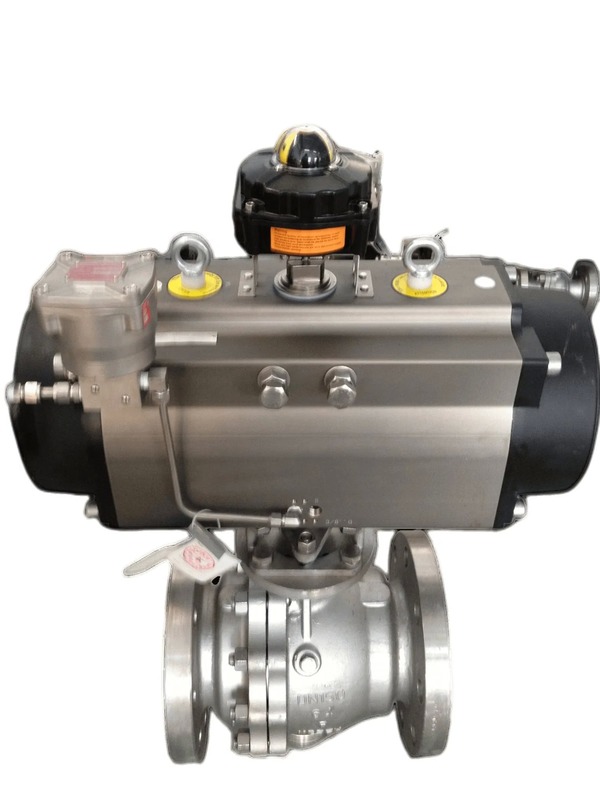

Pneumatic Actuator with Monitor for Automated On/Off Valve Position
This advanced pneumatic actuator features visual position indication and controller signaling for automated valve operations in demanding industrial environments.
Key Features
- Multiple switching & communication options including solid state proximity switches, mechanical switches, and 4-20mA continuous outputs
- Robust enclosures designed for harsh process environments
- Quick-access enclosure design for easy maintenance
- Precision quick-set cams for accurate positioning
- Compact design with integrated visual position indicators
- Dual shaft O-ring seals for enhanced protection
- Oil-impregnated bronze bushing prevents shaft seizure and ensures smooth operation
- Comprehensive sealing system protects against both external corrosives and internal contaminants
Industrial Applications
- Automated On/Off valves in hazardous process environments
- Corrosive and washdown process areas
- Food and beverage processing
- Chemical processing plants
- Pharmaceutical and biotech facilities
- Agricultural processing
- Oil and gas operations
- Marine and offshore installations
Engineered for Extreme Conditions
The explosion-proof VSL valve monitoring system is available with a 316 stainless steel enclosure, offering exceptional durability for corrosive, heavy washdown, and marine environments. Compatible with quarter-turn actuators, manual operators, linear operators, and positioners using standard stainless steel mounting systems.
The VSL system provides reliable valve position monitoring with clear visual indicators and controller signaling for all process areas.
