Detailinformationen |
|||
| Modell Nr.: | VS-052 ~ VS-400 | angepasste Fassung: | Zugeschaltete Art |
|---|---|---|---|
| Arbeitstyp: | Rotation | Druck: | Mittlerer Druck |
| Arbeitstemperatur: | Normale Temperatur | Schauspieltyp: | Federrückzug |
| Material: | Aluminium | Struktur: | Rack und Ritzel |
| Drehbewegung: | 0-90 | Produktionskapazität: | 50000pc / y |
| Betriebsprinzip: | Wandelt Druckluft in Drehbewegung um | Konstruktion: | Zylindergehäuse, Kolben, Zahnstange und Ritzel |
| Drehbewegungssteuerung: | Präzise Kontrolle des Drehwinkels | Kompaktes Design: | Hohes Drehmoment im kleinen Paket |
| Ansprechzeit: | Schnelle Betätigung | ||
| Hervorheben: | 90-Degree Rotation Pneumatic Actuator,Medium Pressure Rotary Actuator,Normal Temperature Rack and Pinion Actuator |
||
Produkt-Beschreibung

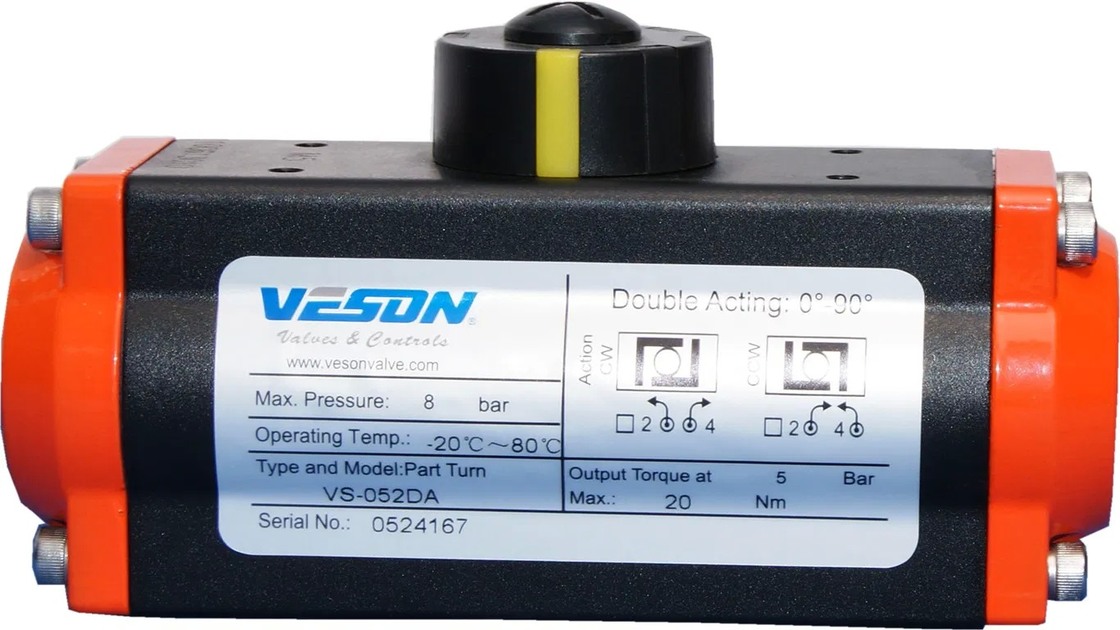

Air Torque Type Valve Cylinder Rotary Pneumatic Actuator
Pneumatic Quarter-Turn Actuator / Pneumatic Rotary Valve Actuator / Air Gear Actuator
A rack and pinion pneumatic actuator converts compressed air pressure into precise rotary motion for industrial applications. This robust mechanism delivers reliable performance in demanding environments.
Key Features and Benefits
- Precise Motion Control: Converts linear piston movement into accurate 90° rotary motion
- Compact Design: High torque output in a space-efficient package
- Rapid Response: Fast actuation for time-sensitive operations
- Durable Construction: Aluminum or stainless steel housing withstands harsh conditions
- Easy Integration: Direct valve mounting with Namur-compatible position indicator
- Versatile Applications: Suitable for process control, automation, HVAC, and fluid handling systems
Technical Specifications
| Aspect | Description |
|---|---|
| Definition | Mechanical device for 90° valve rotation control |
| Working Principle | Converts pneumatic energy to mechanical motion |
| Key Components |
|
| Advantages |
|
| Applications | Industrial processes, HVAC systems, automation |
Product Images
For optimal performance, consider torque requirements, operating pressure, and environmental conditions when selecting this actuator for your specific application.
